CDM-840 Remote Router Revision 2
Rear Panel Connections MN-CDM840
3–11
3.3.2 115V/230V Alternating Current (AC) Power Interface (Standard)

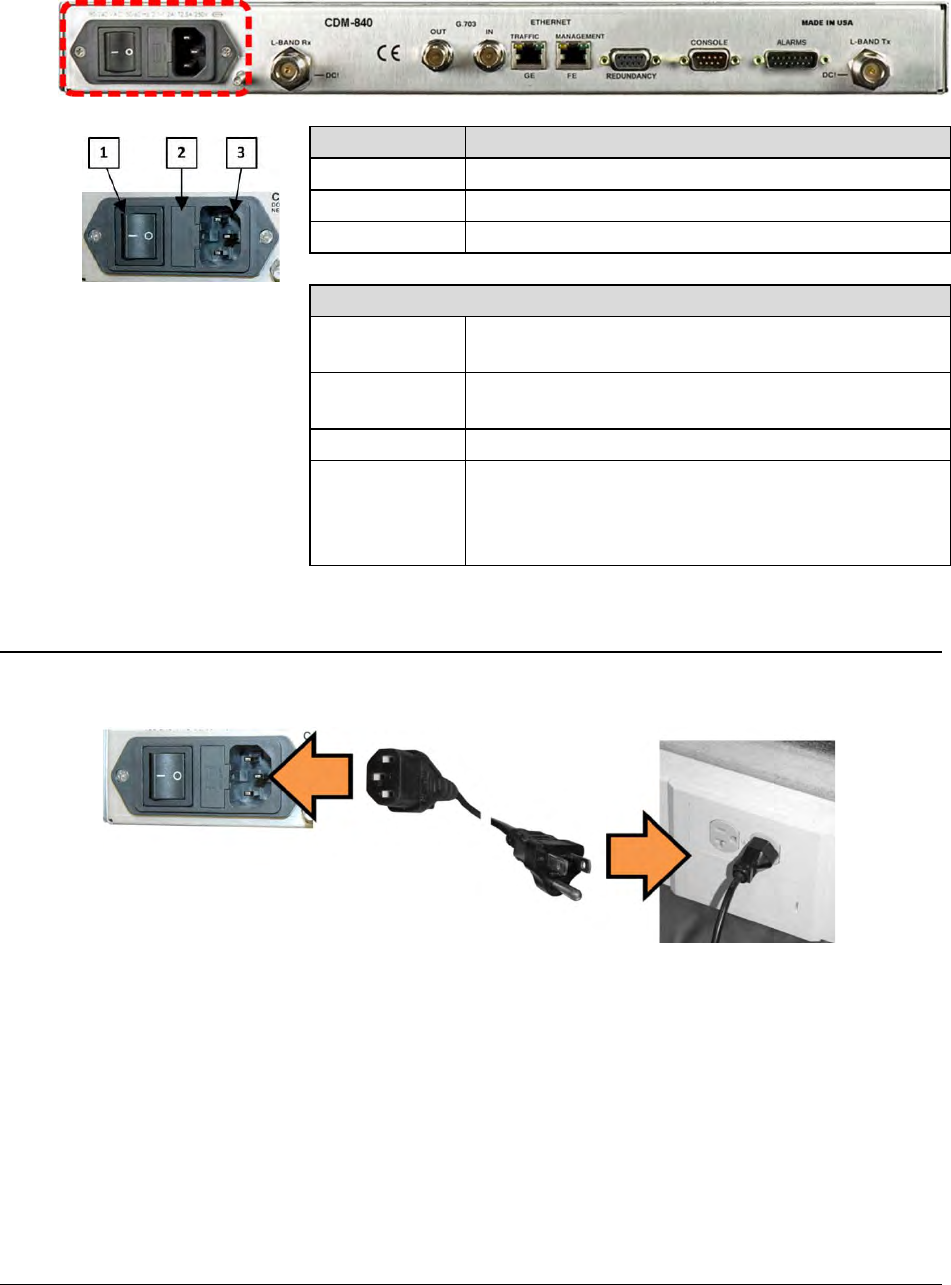

Figure 3-5. CDM-840 AC Power Interface
3.3.2.1 AC Operation – Applying Power
Figure 3-6. Applying AC Power to the CDM-840
To apply AC power to the CDM-840:
• First, plug the provided AC power cord female end into the unit.
• Then, plug the AC power cord male end into the user-supplied power source.
• Finally, switch the unit ON.
Feature
Description
1 On / Off Switch
2
Press-fit Fuse Holder
3
IEC Three-prong Connector
AC Power Specifications
Input Power
40W maximum, 20W typical (without BUC)
245W maximum (with BUC)
Input Voltage
100V to 240V AC, +6%/-10%, autosensing
(total absolute max. range is 90V to 254V AC)
Connector Type IEC
Fuse Protection
Line and neutral fusing
(2X) 5mm x 20mm Slow-blow type fuses:
T2.5A (2.5A) (115V or 230V AC operation – without BUC)
T4A (4.0A) (115V or 230V AC operation – with BUC)
