CDM-840 Remote Router Revision 2
Rear Panel Connections MN-CDM840
3–6

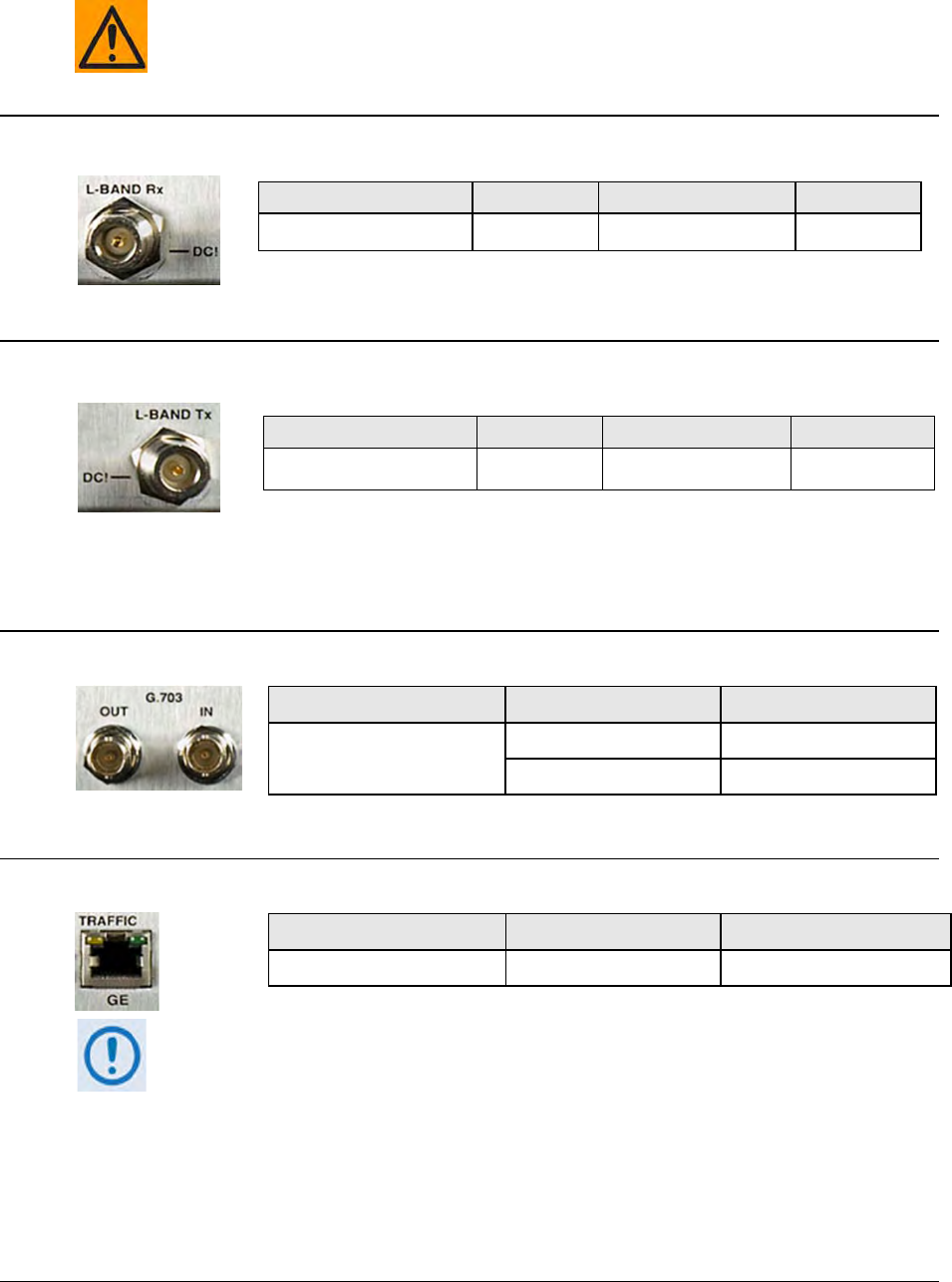

3.2.1 IF Connector Group
THERE MAY BE DC VOLTAGES PRESENT ON THE TYPE ‘N’ RX AND TX IF CONNECTORS,
UP TO A MAXIMUM OF 48 VOLTS.
3.2.1.1 ‘L-BAND Rx’ IF Connector
3.2.1.2 ‘L-BAND Tx’ IF Connector
3.2.2 Terrestrial Data Connector Group
3.2.2.1 ‘G.703 | OUT’ / ‘G.703 | IN’ Connectors
Connector Type Name Direction
BNC female
G.703 | OUT Out
G.703 | IN In
3.2.2.2 ‘TRAFFIC | GE’ (Gigabit Ethernet) Connector
Connector Type Name Direction
RJ-45 female modular jack
TRAFFIC | GE
In/Out
• This interface operates at 10/100/1000 Mbps, half and full duplex, auto-
negotiating.
• The maximum Ethernet packet size is 1522 bytes (including Ethernet headers and
CRC).
Connector Type
Ref Des
Description
Direction
Type ‘N’ 50Ω Female L-BAND Rx Rx IF Signal, L-Band In
Connector Type
Name
Description
Direction
Type ‘N’ 50Ω Female L-BAND Tx Tx IF signal, L- Band Out
