CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–54
6.4.4.5.3.2 Configuration | Network | ARP
Use this page to configure CDM-840 ARP (Address Resolution Protocol) parameters.

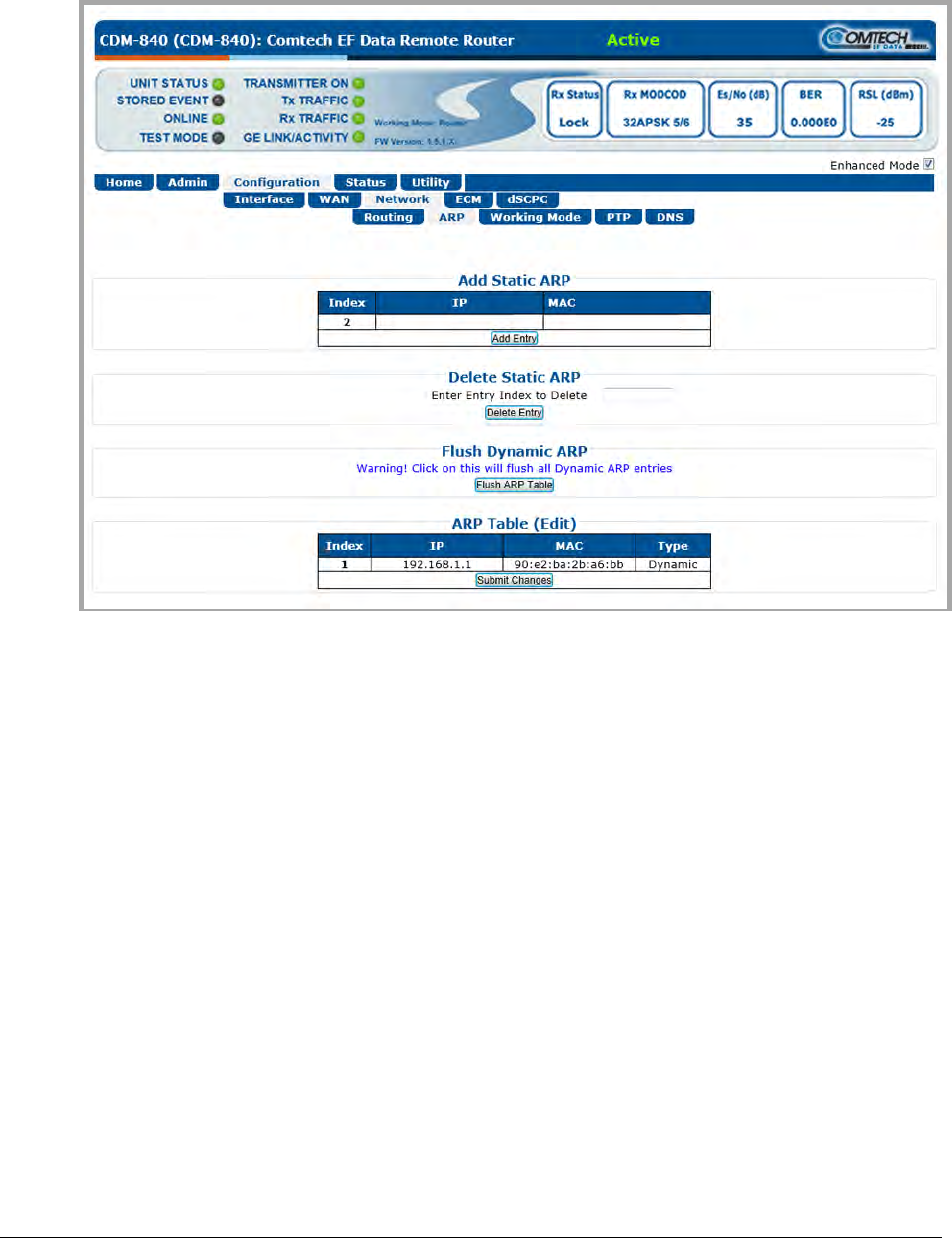

Figure 6-26. Configuration | Network | ARP Page
Add Static ARP
Enter the desired IP and MAC addresses. Click [Add Entry] when done. The Index column
automatically increments to the next available number when the specified static ARP entry is
added to the ARP Table.
Delete Static ARP
Enter Entry Index to Delete – This deletes the specified entry index from the ARP Table.
Click [Delete Entry] when done.
Flush Dynamic ARPs
Click [Flush ARP Table] – This deletes all dynamically-learned ARP entries.
