CDM-840 Remote Router Revision 2
Ethernet-based Remote Product Management MN-CDM840
6–44
6.4.4.5.2.4 Configuration | WAN | Label
Use this page to assign up to four Generic Stream Encapsulation (GSE) labels.

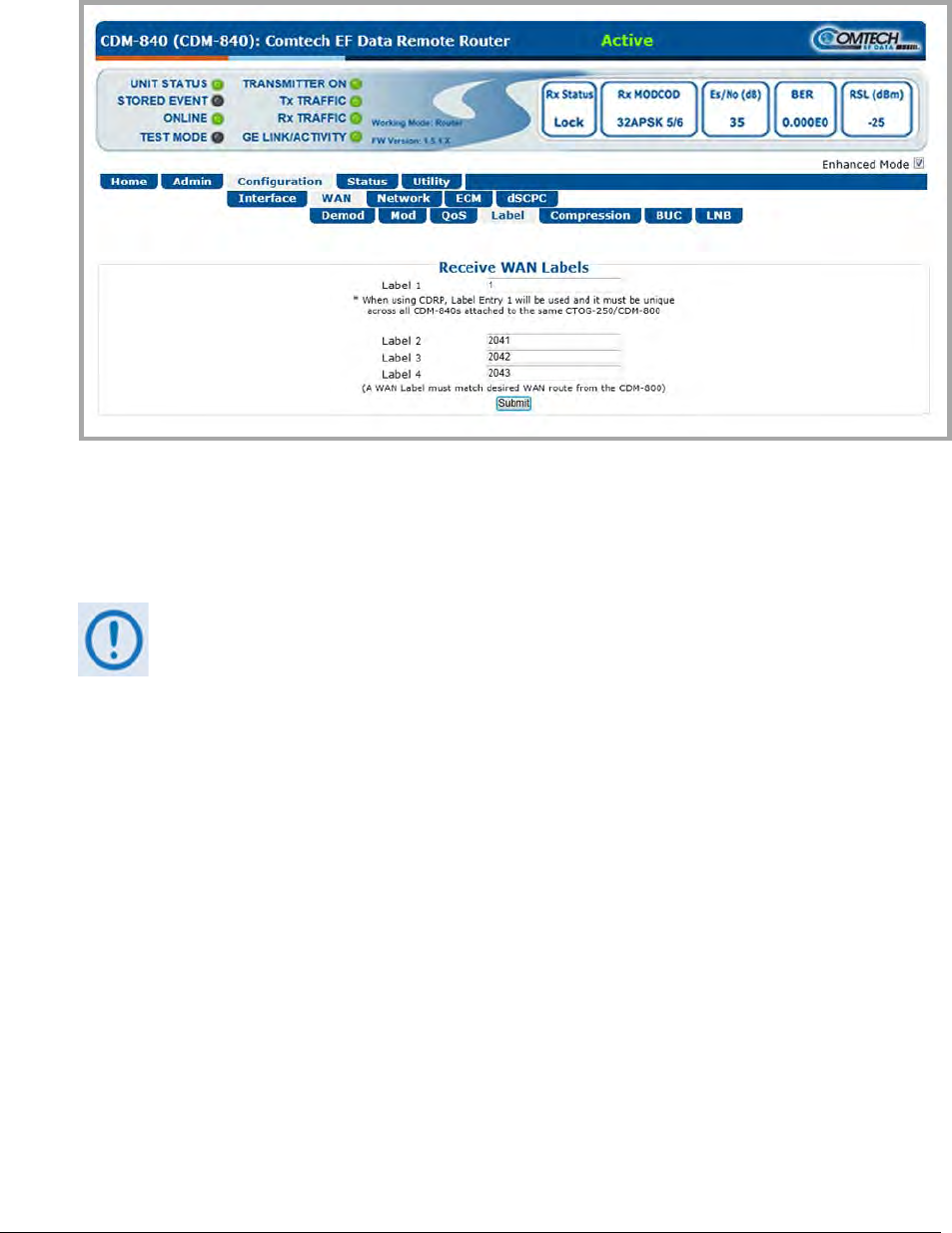

Figure 6-19. Configuration | WAN | Label Page
Receive WAN Labels
Edit the Label 1 through Label 4 text boxes to suit. Each label has a valid range of 1 to 2047.
The assigned Receive WAN Labels must match the WAN Labels assigned on the
CTOG-250 Route Table. Note that the preferred method of operation (as required
for ACM/VCM Operation) is to configure a unique WAN Label in Entry #1 for each
CDM-840 across the networ,k and then enable CDRP on the CTOG-250
. The
associated Route to WAN Label will be automatically updated and maintained.
Create the desired labels. Click [Submit] to save.
