CDM-840 Remote Router Revision 2

Appendix C MN-CDM840

C–2

C.2 Supported Network Configurations

When running in BPM Mode, the Advanced VSAT System supports Flat Networks, Flat Networks

with Routers, and VLAN Trunking network topologies.

C.2.1 F lat Network

In a Flat Network (Figure C-2), all devices are on the same IP subnet. This is a very easy-to-use

topology for simple and/or small networks.

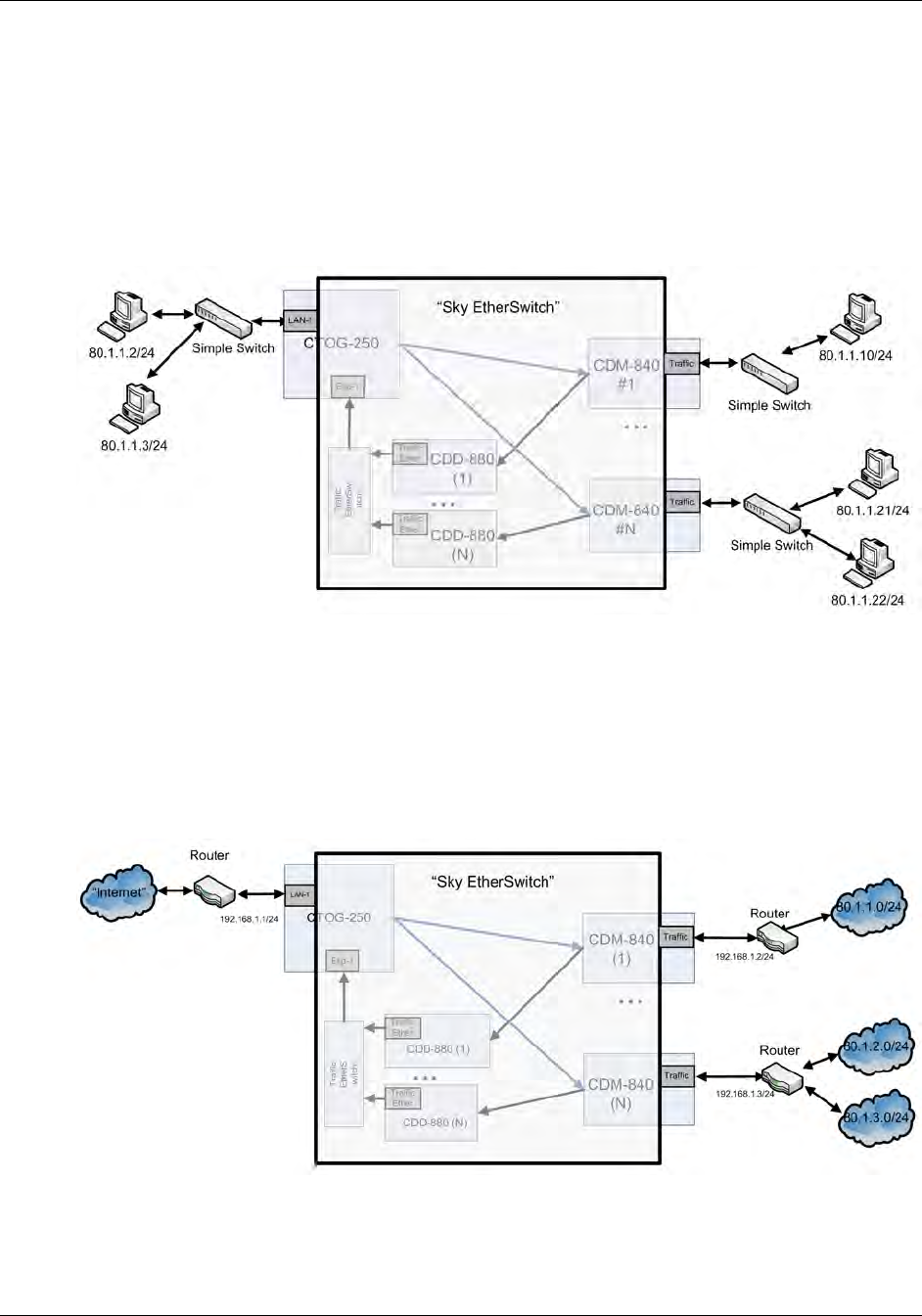

Figure C-2. Flat Network

C.2.2 F lat Network with R outers

This variation of the Flat Network includes Routers at each site. With this topology (Figure C-3),

the Routers can be placed on the same subnet as if they were connected to the same Ethernet

Switch, and all core routing protocols such as OSPF, RIPv2, BGP, VRRP, etc. work as expected.

Figure C-3. Flat Network with Routers
