CDM-800 Gateway Router Revision 1

Ethernet-based Remote Product Management MN-CDM800

5–39

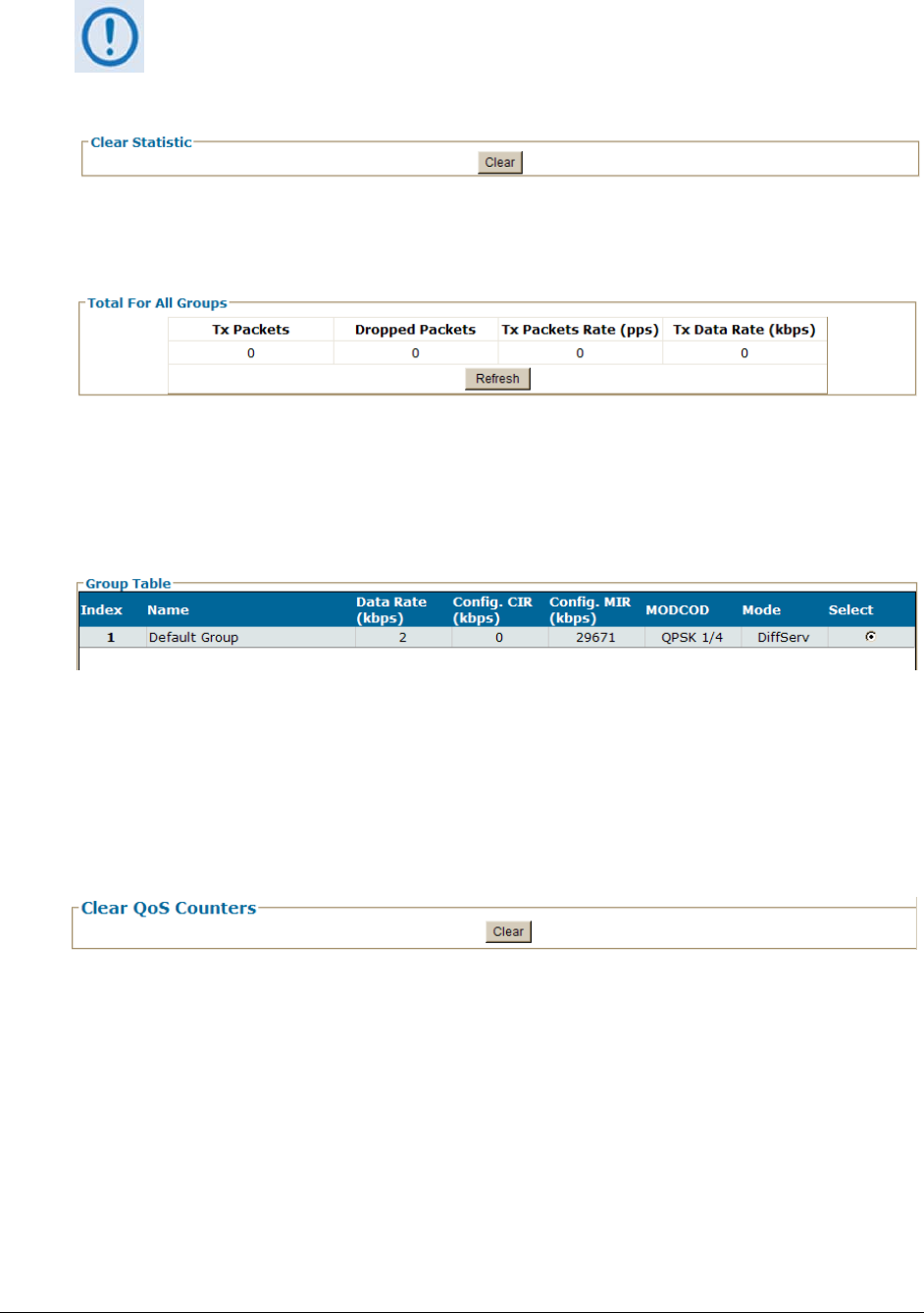

TheClearStatistic,TotalForAllGroups,GroupTable,andClearQoSCounters

sectionsaretypicalforall‘Status|Statistic|QoS’pageconfigurations.

Clear Statistic



Click[Clear]toclearalloperationalstatisticsfromthebuffer .

Total For All Groups



Seethe‘Configuration|WAN|QoS’pageforthedefinitionofthetermsusedinthistable.



Click[Refresh]toupdatethissectionwiththelatestavailablestatistics.

Group Table

ThissectionisactiveonlywhenQoSControlModeissettoDiffServ.



Seethe‘Configuration|WAN|QoS’pageforthedefinitionofthetermsusedinthissection.



ClickSelecttoactivateadesiredgroup(whenmorethanonegrouphasbeencreated).Otherwise,

ifonlyasingle groupisfou

nd,operat iondefaultstothisselec t i o n.



Click[Refresh]toupdatethissectionwiththelatestavailablestatistics.

Clear QoS Counters



Click[Clear]toclearallQoScountersfr omthebuffer.


