CDM-800 Gateway Router Revision 1

Ethernet-based Remote Product Management MN-CDM800

5–30

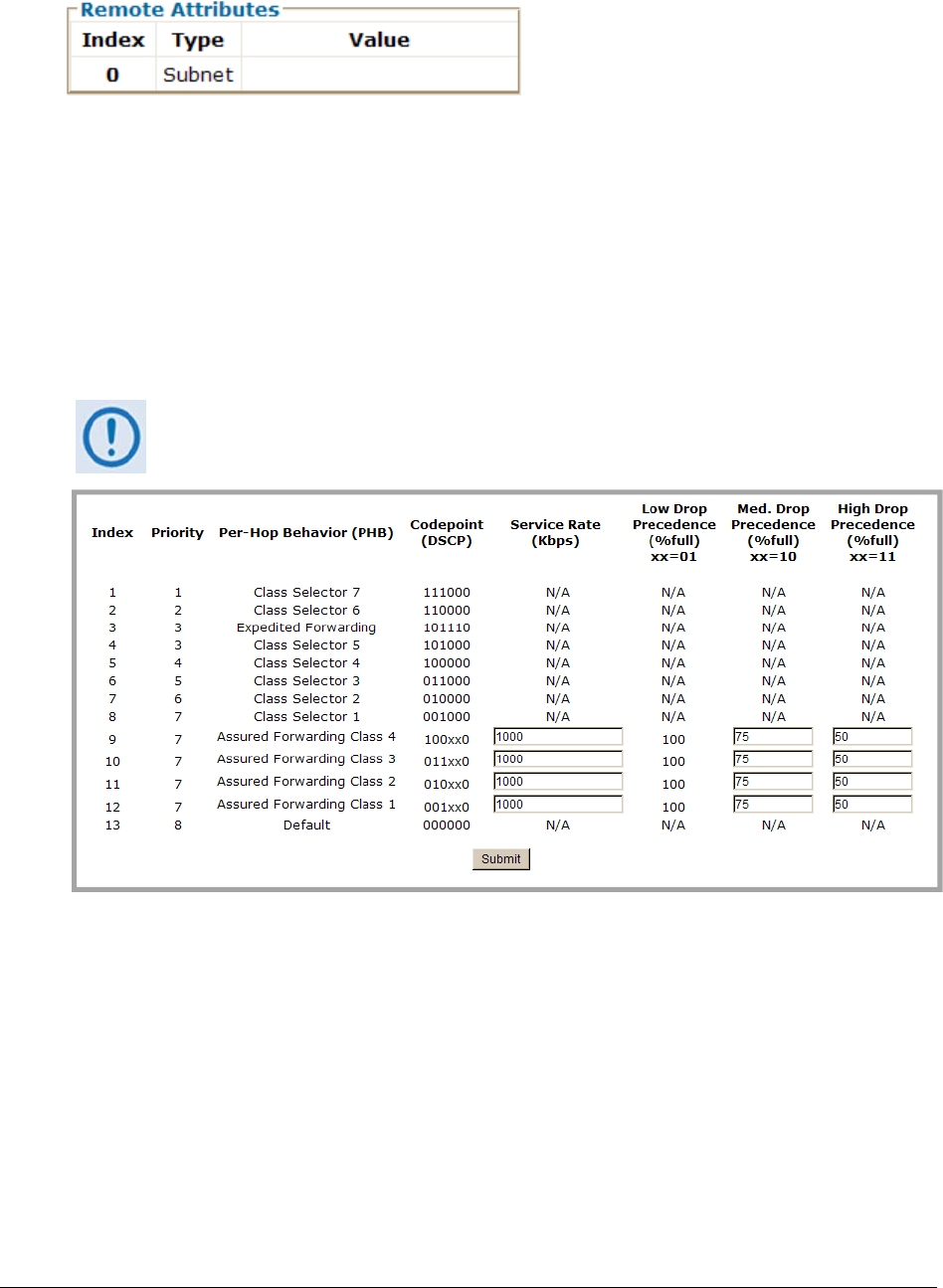

Remote Attribute



ThistabledisplaysRemoteAttributeValuefortheactivegroup.



• Index–Theautomatically‐assignedinternalindexnumberforthegroupisidentifiedhere.



• Type–Atpresent,Subnetistheonlyavailableattribute.



• Value–Thisistheassignedsubnet,inxxx.xxx.xxx.xxx/yyformat.

Differentiated Services Table

TheDifferentiatedServicestableappearsonlywhenQoSControlMode=DiffServ.

Fromlefttoright:



• Index–Theautomatically‐assignedspecificruleinternalindexnumberisidentifiedhere.



• Priority – IP traffic is prioritized basedupontheDSCP(DiffServCodePoints)ClassSelector

Precedence.



• Per‐HopBehavior(PHB)–ThisistheTrafficclassthatdetermineshowpacketswillbe

forwarded.



• Codepoi

nt(DSCP)–ThisistheCodePointvaluefortheTypeofService(ToS)byteintheIP

header.
