DMD2050E Universal Satellite Modem Front Panel Upgrade Procedure
MN-DMD2050E Revision 2 B–2
B.3.1 Record the Features and Options
Find and record the features and options that you want to add to the unit.
1. Go to the MAIN Menu.
2. Go to the SYSTEM Menu.
3. Go to the HW/FW CONFIG Menu.
4. Go to the FEATURES Menu. The lower line shows NORMAL.
5. Go to the UPGRADE LIST Menu.
6. Scroll through the list of features and options.
7. Record the items you want to upgrade.
Option Status
Description
INSTALLED The option is already available in the feature set of the unit.
HW & KEY REQ The option is not installed and requires additional hardware. Contact Comtech for help.
HW REQUIRED The option requires additional hardware. Contact Comtech for help.
KEY CODE REQ The option is available as an upgrade that you install using the front panel.

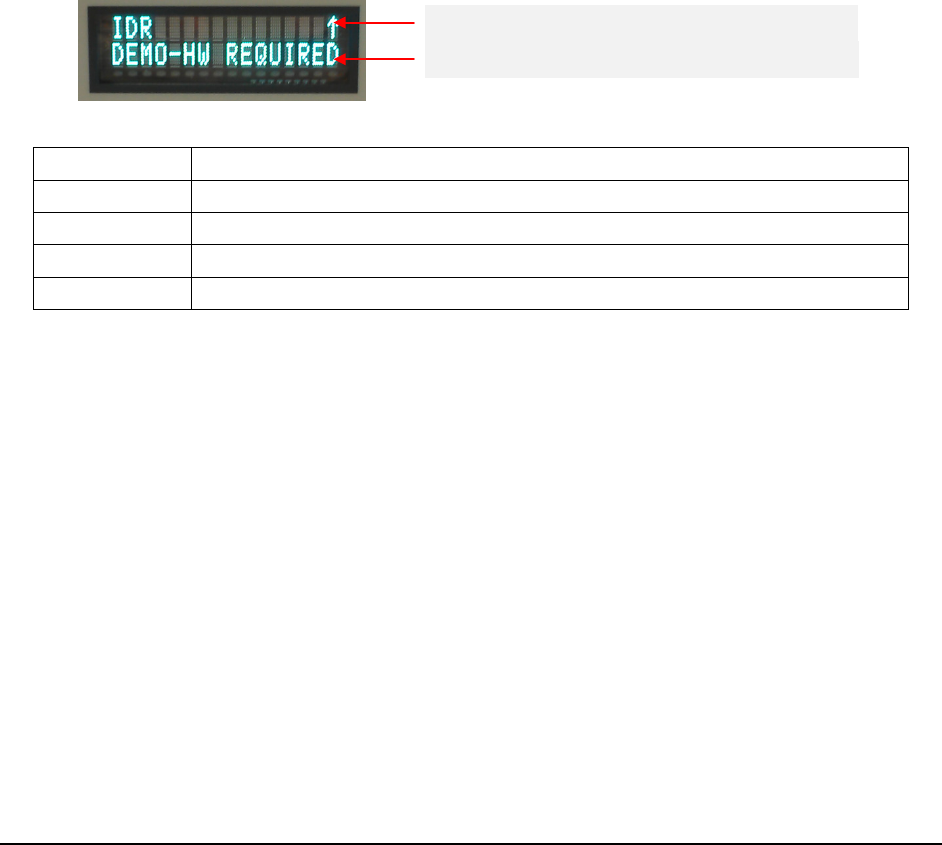

The Option is on the top line.
The Status is on the bottom line.
