KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1

Ethernet Management MN/KPA.IOM

6–17

Once the desired settings have been entered, click [Submit] as needed to execute update of this

section.

6.5.4.4.2 Status | Status page

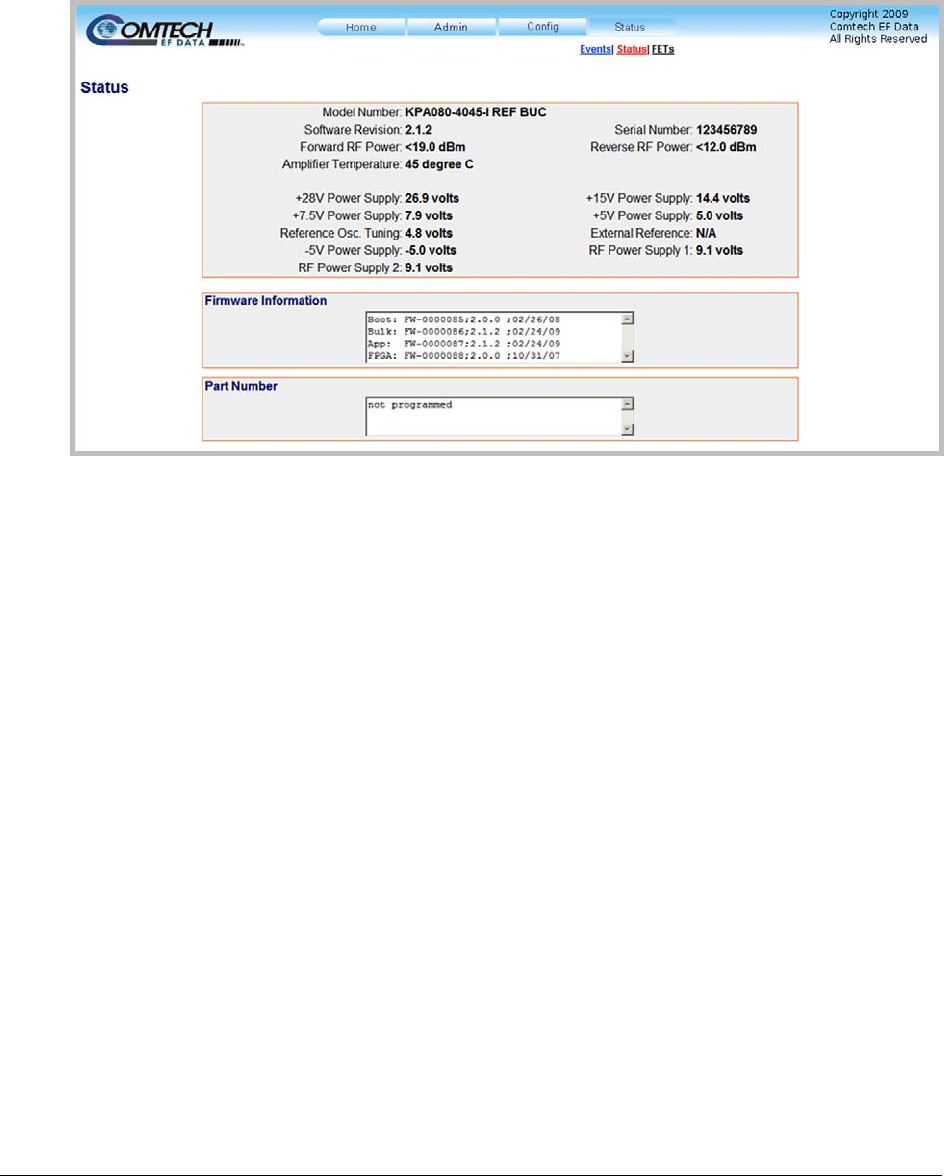

Figure 6-9. Status | Status page

The read-only ‘Status | Status’ page (Figure 6-9) provides the user with the

means to monitor

the current operating status of a variety of features; provides identification parameters for the unit

itself (e.g.., part number, model number, etc.); and identifies the currently running firmware (i.e.,

the software revision, and the individual firmware part numbers, versions, revision letters, and

release dates).
