UT-4500-A Series Upconverters Revision 1

Rear Panel Connectors MN-UT4500A

3–6

3.2.2 Module-mounted Connectors

The information that follows pertains to the connectors provided on the available switch

modules (e.g., I/O Module (IOM), Receive Switch Module (RSM), and Transmit Switch Module

(TSM)). Quick reference tables listing all available modules are provided in Section 3.2.2.2.

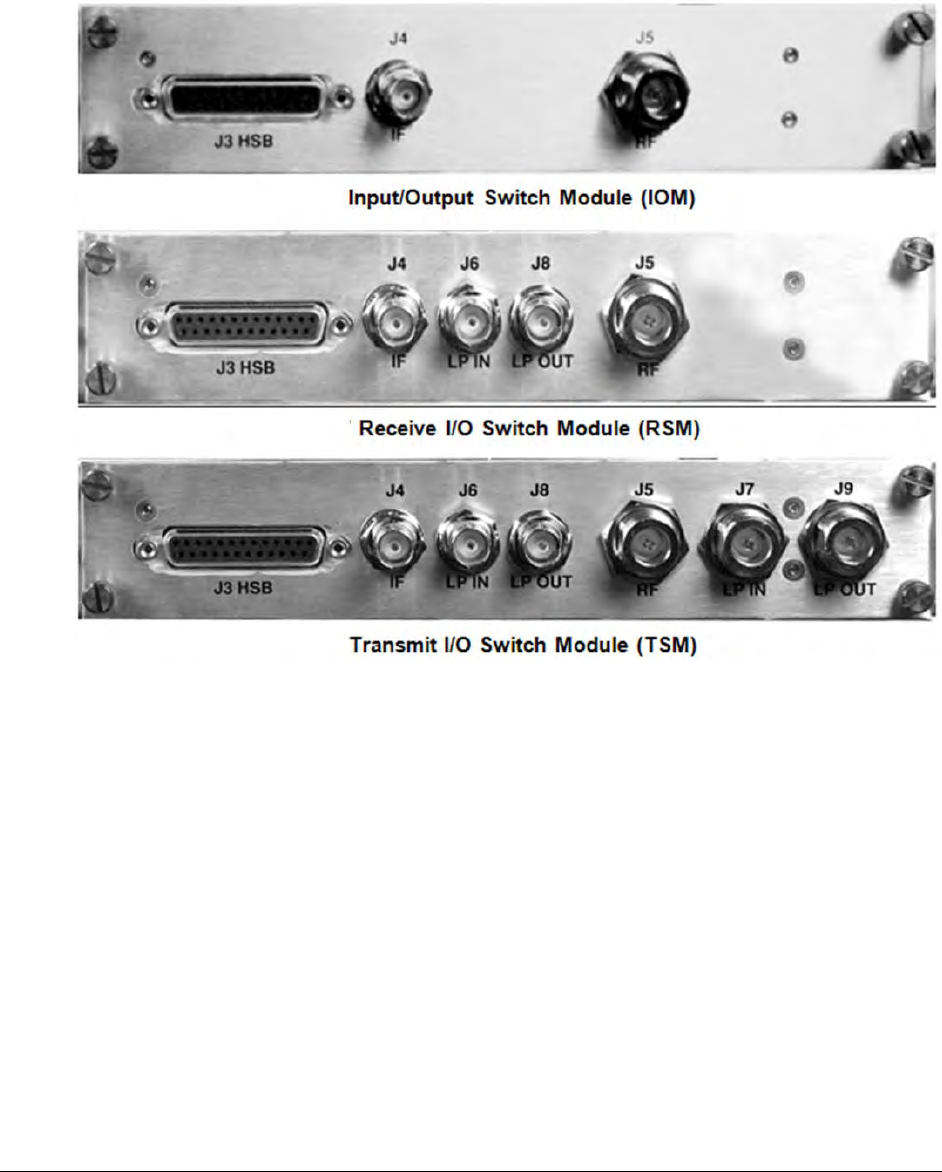

Figure 3-2. IOM, RSM, and TSM Switch Modules
