UT-4500-A Series Upconverters Revision 1

Ethernet-based Remote Product Management MN-UT4500A

6–21

6.4.5.3.5 Config | Redundancy

See Appendix B. REDUNDANT SYSTEM OPERATION for the functional

description of this page.

Use this page to configure the UT-4500-A’s Redundancy Switch Mode.

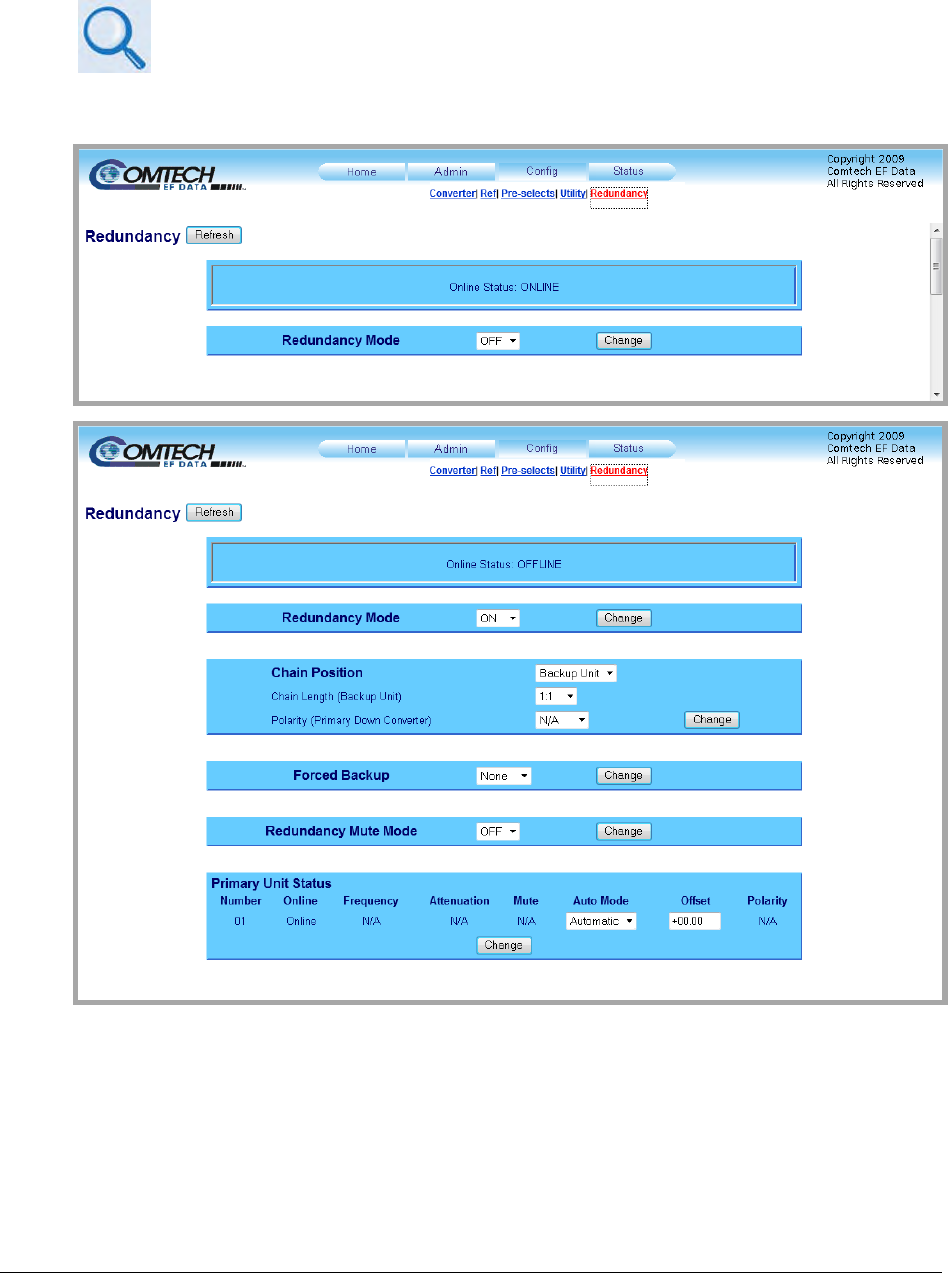

Figure 6-10. Config | Redundancy page

(Top) Page with Redundancy Mode OFF

(Bottom) Page with Redundancy Mode ON

Click [Refresh] to update the page with its latest operating parameters.
