MBT-4000 Multi-Band Transceiver System Revision 4

External Connectors MN/MBT4000.IOM

3–3

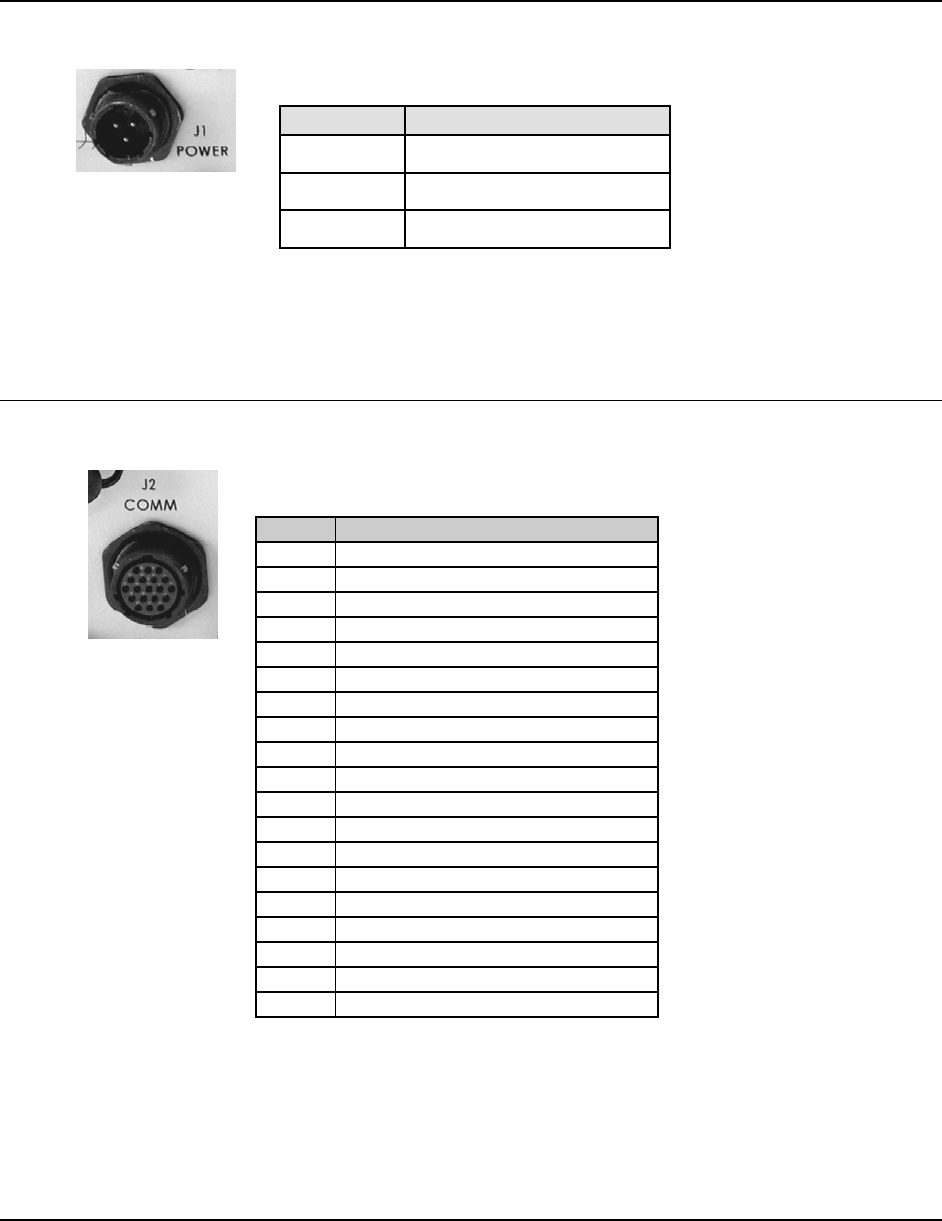

3.2.1 IF Signal Side Connectors

3.2.1.1 POWER (J1)

Table 3-2. POWER (J1) Pin Connections

Pin Signal

A

LINE

B NEUTRAL

C

GND

NOTE - Mating Connectors:

CEFD P/N CN/MS-STPG03F02

(ITT Cannon KPT06B-12-3S)

3.2.1.2 COMM (J2)

Pin Signal

A RS 485 Rx+

B RS 485 Rx-

C RS 485 Tx+

D RS 485 Tx-

E RS 232 RD

F NC

G RS 232 TD

H NC

J NC

K SUM FLT COMM

L SUM FLT NO

M SUM FLT NC

N NC

P NC

R NC

S NC

T GND

U GND

V NC

NOTE - Mating Connectors:

CEFD P/N CN/MS3116J14-19P

(Cannon MS3116J14-19P)

Table 3-3. COMM (J2) Connector Pinouts
