MBT-4000 Multi-Band Transceiver System Revision 4

Introduction MN/MBT4000.IOM

1–3

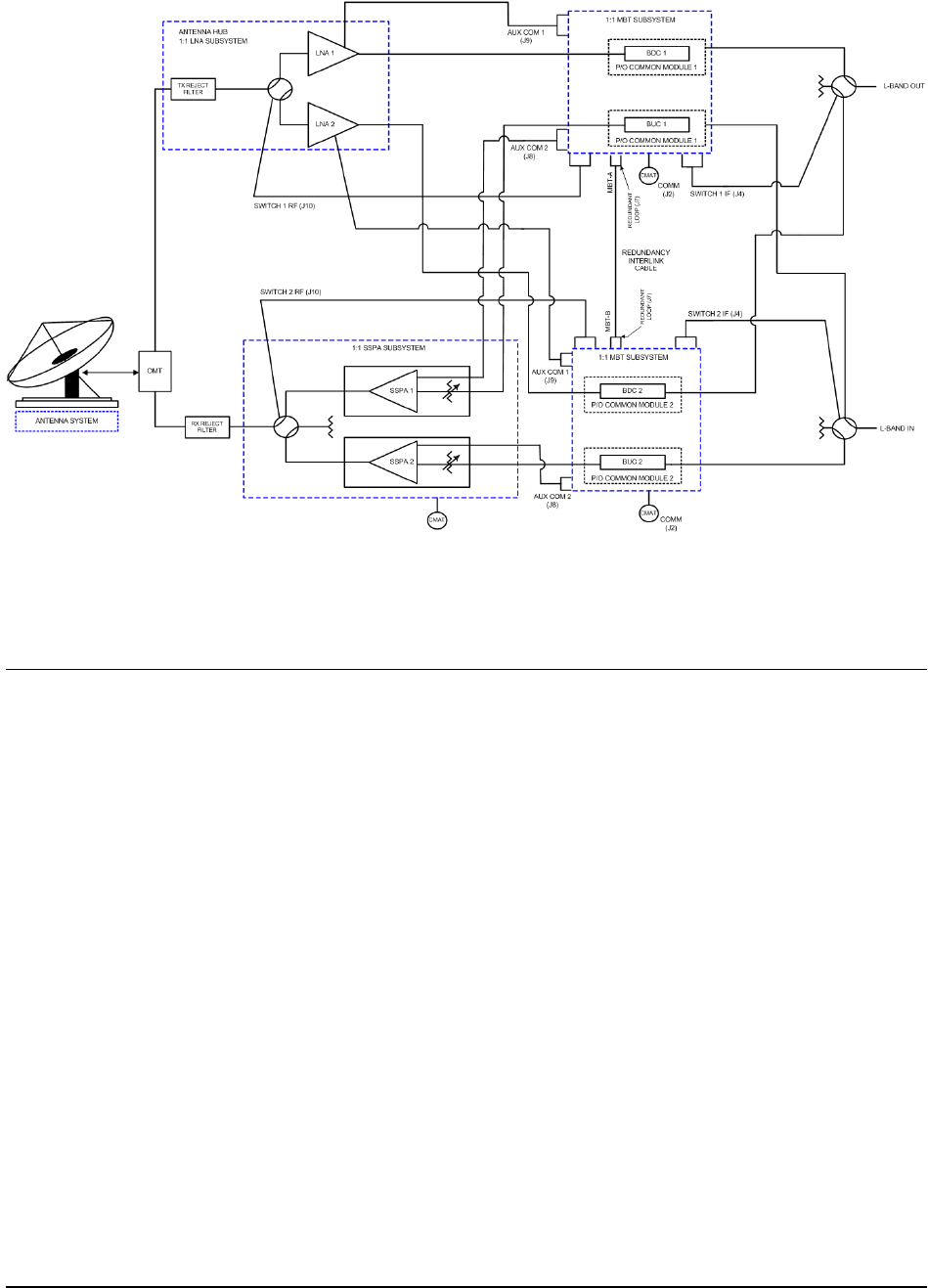

Figure 1-3. Operational Diagram for Dual-Base (Chain) Redundancy Option

1.5 System Overview

The MBT-4000 Multi-Band Tranceiver System is constructed in a modular configuration. Figure

1-4 illustrates the key components of this configuration.

Common to the configuration for any frequency band of operation is a base module, which

provides the Monitor and Control (M&C), Power Supply, and Reference function.

Band-specific BUC and BDC modules can be mounted to the base module with clip-type

fasteners. BUC and BDC modules for other bands and spares for all modules are stored in a

transit case until needed.
