Chapter 3 - Using the Command Line Interface (CLI) 3-29
Vipersat Configuration

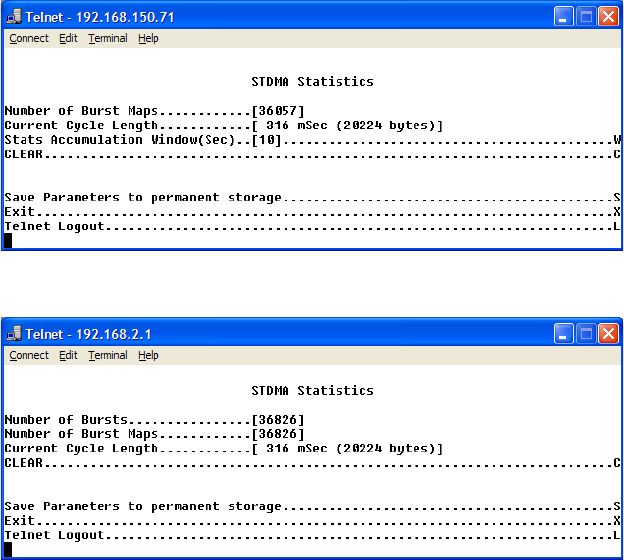

Figure 3-37
STDMA Statistics screen (Hub)
Figure 3-38
STDMA Statistics screen (Remote)
The window of time that is used to average the accumulation of statistics can
be set by entering W at the command prompt in the Hub screen, then entering
the number of seconds (from 1 to 20).
To clear (reset to 0) these statistics, enter C at the command prompt.
Show Hub Statistics
Entering a W at the command prompt in the STDMA screen (figure 3-7)
displays the current statistics for the target CDM-570/570L Hub, as shown in
figure 3-39.
