CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Cables and Connections MN/CRS170A.IOM

4.5.2.3 Gigabit Ethernet Interface (CDI-70)

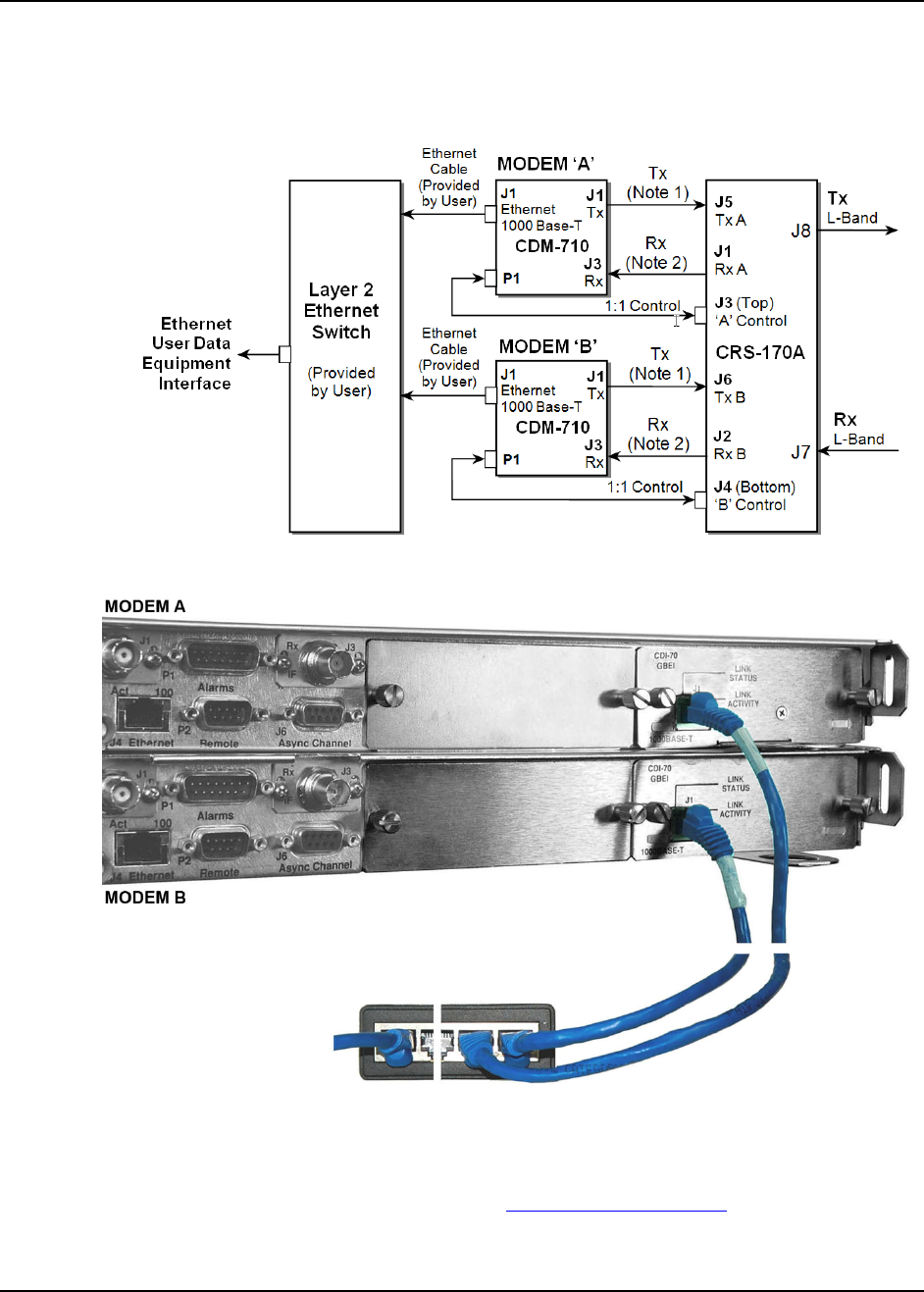

Figure 4-29 shows a block diagram and cabling example of a CDM-710 1:1 modem configuration

with Gigabit Ethernet (also referred to as GigE or GbE) interface in Slot 2 and Slot 1 empty.

Customer-supplied Ethernet cables are connected directly to the GigE interface, so no kit is required.

CDM-710 Gigabit Ethernet (GigE) Interface – Block Diagram

Figure 4-29. CDM-710 Gigabit Ethernet (GigE) 1:1 Example

For further information, see the white paper “Bridged Ethernet Interface Redundancy” available

for download from Comtech EF Data’s Web site (www.comtechefdata.com

4–27
