CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Cables and Connections MN/CRS170A.IOM

4.4.2.4 Gigabit Ethernet Interface (CDI-70)

Figure 4-24 shows an example of a CDM-700 1:1 modem configuration with Gigabit Ethernet (also

referred to as GigE or GbE) interface in Slot 1 and Slot 2 empty. Customer-supplied Ethernet cables

are connected directly to the GigE interface, so no kit is required.

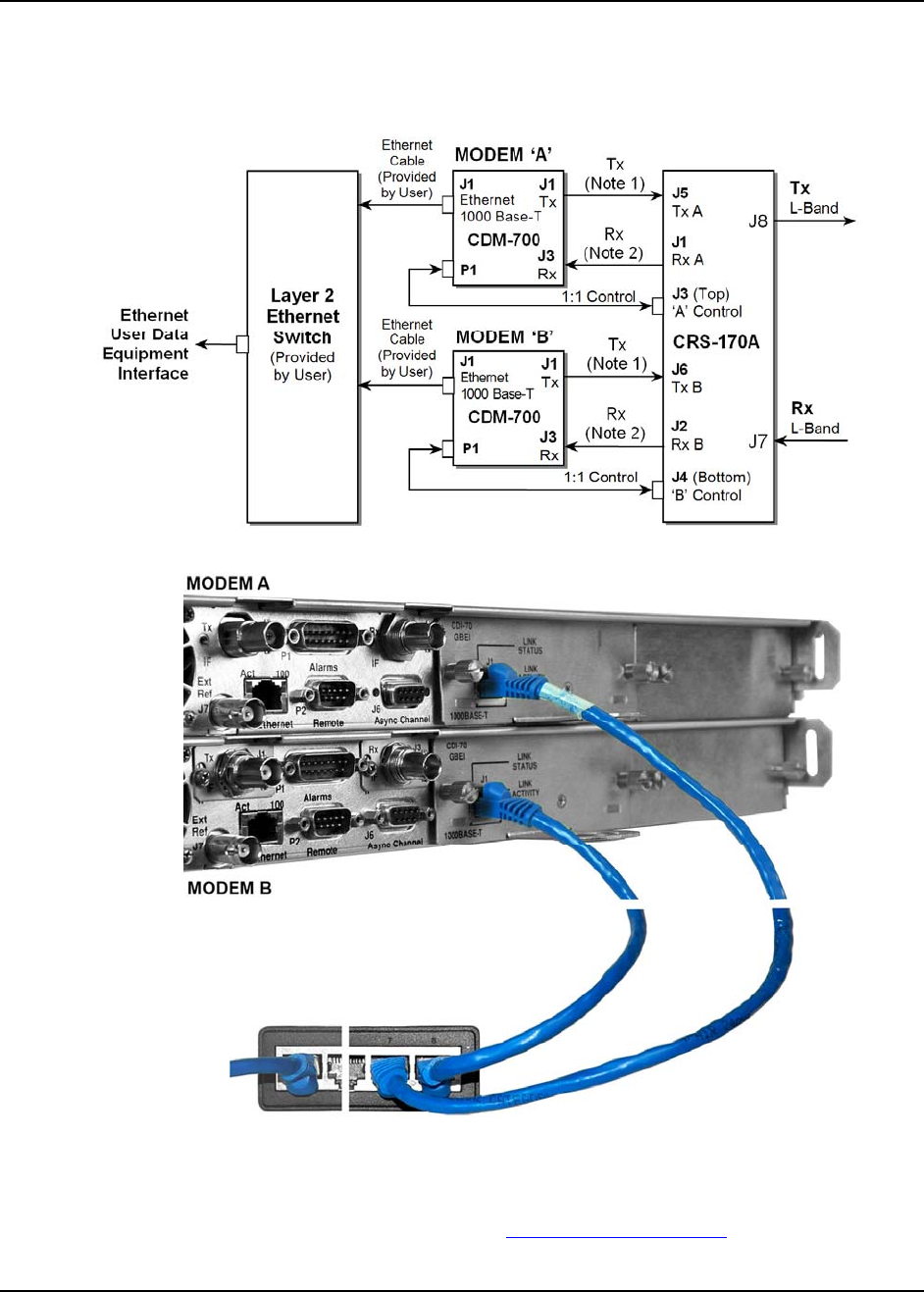

CDM-700 Block Diagram: Gigabit Ethernet (GigE) Interface

Figure 4-24. CDM-700 Gigabit Ethernet (GigE) 1:1 Example

For further information, see the white paper “Bridged Ethernet Interface Redundancy,” available

for download from Comtech EF Data’s Web site (www.comtechefdata.com

4–22
