2114 West 7th Street, Tempe, Arizona 85281 USA Voice 1 480 333 2200 Fax 1 480 333 2540 Email sales@comtechefdata.com

Comtech EF Data reserves the right to change specifications of products described in this document at any time without notice and without obligation to notify any person of such changes. Information in this document may differ from

that published in other Comtech EF Data documents. Refer to the website or contact Customer Service for the latest released product information.

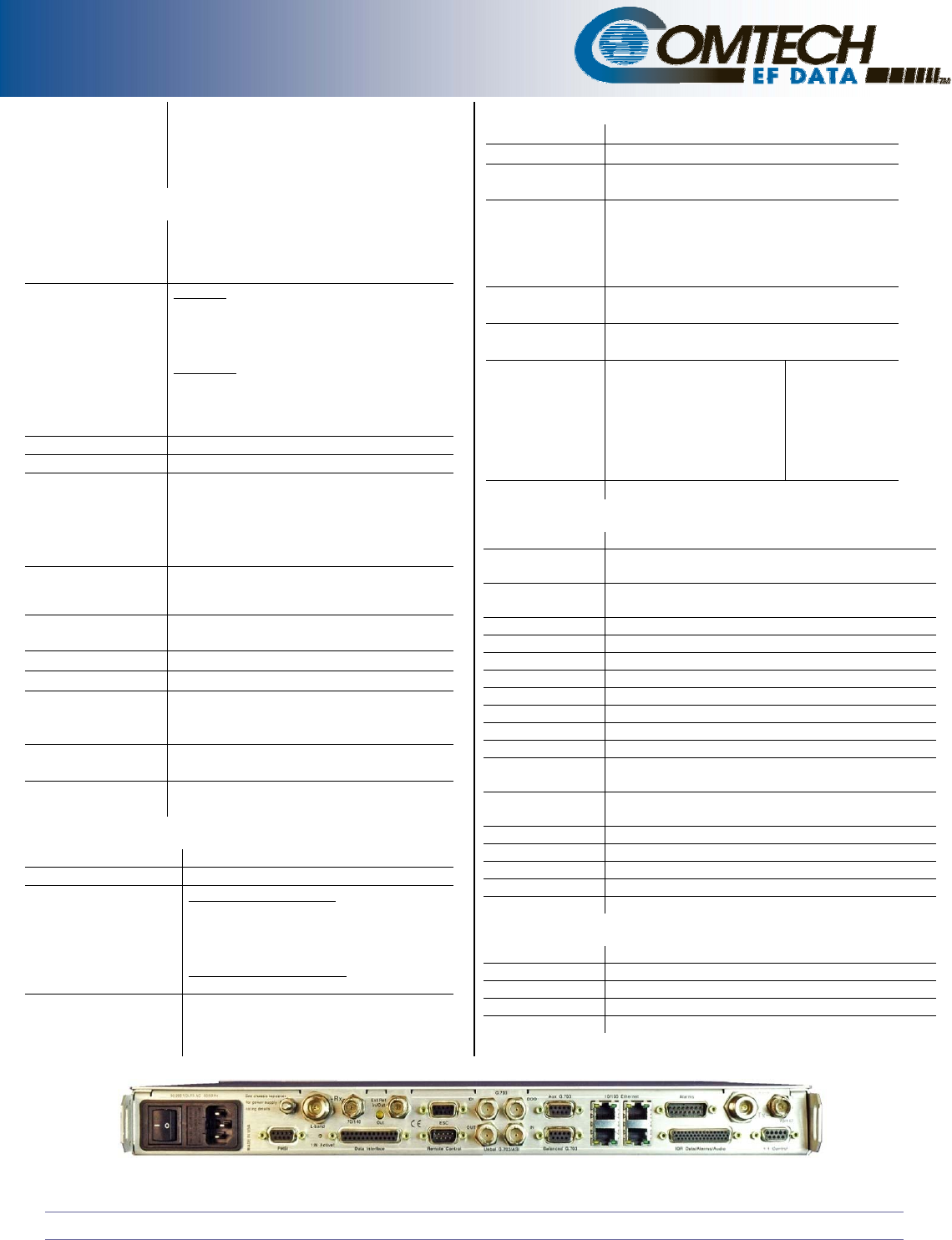

CDM-625 Advanced Satellite Modem

with DoubleTalk

Carrier-in-Carrier

BUC Power Supply

(HW Option)

24VDC, 4.17 Amps max., 90 W @ 50° C

48VDC, 3.125 Amps max., 150W @ 50° C

(180 W @ 30° C)

Supplied through Tx IF center conductor and selectable ON/OFF via

M&C control.

DEMODULATOR

Input Power Range, Desired

Carrier

50-180 MHz: -105 + 10 log (symbol rate) to -70 + 10 log

(symbol rate) dBm

950-2000 MHz: -130 + 10 log (symbol rate) to -80 + 10 log

(symbol rate) dBm

Max Composite Operating

Level

50-180 MHz:

94 – 10 log (symbol rate, desired carrier) dBc, +10 dBm max,

with the additional requirement that within

± 10 MHz of the desired carrier the composite power is ≤ +30

dBc

950-2000 MHz

102 – 10 log (symbol rate, desired carrier) dBc, +10 dBm

max, with the additional requirement that within

± 10 MHz of the desired carrier the composite power is ≤ +30

dBc

Absolute Maximum +20 dBm

Adaptive Equalizer 5-tap design, selectable ON/OFF

Acquisition Range Programmable in 1kHz increments

Below 32 ksymbols/sec: ± 1 kHz to ± (Rs) kHz, where Rs =

symbol rate in ksymbols/sec

Between 32 and 389 ksymbols/sec: ± 1 kHz to ± 32 kHz

Above 389 ksymbols/sec: ± 1 kHz to ± (0.1 * Rs) kHz, up to a

maximum of ± 200 kHz

Acquisition Time Highly dependent on data rate, FEC rate, and demodulator

acquisition range. E.g.: 120 ms average at 64 kbps, R1/2 QPSK,

± 10 kHz acquisition sweep range, 6 dB Eb/No

Plesiochronous/

Doppler Buffer

Selectable from 64 to 262,144 bits, in 16-bit steps

(Additional limitations for G.704 frame boundaries)

Receive Clock Rx Satellite, Tx Terrestrial, External Reference

Clock Tracking ± 100 ppm minimum

LNB Reference (10 MHz) Via RX IF center conductor, 10.0 MHz ± 0.06 ppm (With internal

reference), selectable ON/OFF,

-3.0 dBm ± 3 dB

LNB Voltage Selectable ON/OFF, 13 VDC, 18 VDC per DiSEq 4.2 and 24

VDC at 500 mA maximum

Monitor Functions E

estimate, Corrected BER, Frequency offset, Buffer fill

state, Receive signal level

DOUBLETALK CARRIER-IN-CARRIER

Delay Range 0 to 330 ms

Power Spectral Density Ratio –7 dB to +11 dB (Interferer to Desired)

Eb/No Degradation

0 dB Power Spectral Density Ratio

BPSK/QPSK/OQPSK: 0.3 dB

8-QAM: 0.4 dB

8-PSK: 0.5 dB

16-QAM: 0.6 dB

+10 dB Power Spectral Density Ratio

Additional 0.3 dB

Satellite Restrictions

Satellite in “loop-back” mode (i.e., the Transmit Station can

receive itself)

“Non-processing” satellite (i.e., does not demodulate or

remodulate the signal)

ENVIRONMENTAL AND PHYSICAL

Temperature Operating: 0 to 50ºC (32 to 122°F)

Storage: -25 to 85ºC (-13 to 185ºF)

Power Supply 100 – 240 VAC, +6%/-10%, 50/60 Hz, Auto sensing

-48 VDC (HW Option)

Power Consumption 48 watts (typical with TPC/LDPC Codec and Carrier-in-Carrier

module installed), 55 watts (max.)

280 watts (typical with TPC/LDPC Codec, Carrier-in-Carrier

module and 48 VDC BUC power supply installed), 300 watts

(max.)

Physical Dimensions

(1RU)

1.75H x 19.0W x 17.65D inches

(4.4H x 48W x 44.8D cm) approximate

Weight 10.5 lbs (4.8 kgs) maximum, with all option modules and 48 VDC

BUC power supply installed

CE Mark EN 55022 Class B (Emissions)

EN 50082-1 (Immunity)

EN 60950 (Safety)

EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-9

EN 61000-4-11

EN 61000-4-13

FCC Part 15 Class B

AVAILABLE OPTIONS

Hardware -48 VDC, 65 W Primary Power Supply

Hardware 24 VDC, 90 W @ 50° C BUC Power Supply, AC or DC Primary Power

Supply

Hardware 48 VDC, 150 W @ 50° C (180 W @ 30° C) BUC Power Supply, AC or

DC Primary Power Supply

Hardware Integrated TPC (2

Generation) and LDPC Codec Module

Hardware DoubleTalk Carrier-in-Carrier Module

Hardware VersaFEC Codec Module

FAST L-Band IF (in addition to 70/140 MHz)

FAST Modem Data Rate – 10 Mbps, 15 Mbps, 20 Mbps or 25 Mbps

FAST 8-PSK and 8-QAM Modulation (8-QAM requires TPC/LDPC Codec)

FAST 16-QAM Modulation

FAST TPC/LDPC Codec Data Rate – 10 Mbps, 15 Mbps, 20 Mbps or 20 Mbps

FAST DoubleTalk Carrier-in-Carrier License (Full) – 512 kbps, 1.1 Mbps, 2.5

Mbps, 5 Mbps, 10 Mbps, 15 Mbps, 20 Mbps or 25 Mbps

FAST DoubleTalk Carrier-in-Carrier License (Fractional) – 2.5 Mbps, 5 Mbps,

10 Mbps, 15 Mbps, 20 Mbps or 25 Mbps

FAST VersaFEC Codec Data Rate (CCM) – 2.5 Mbps, 5 Mbps or 16 Mbps

FAST VersaFEC Codec Symbol Rate (ACM) – 300 ksps, 1.2 Msps or 4.1 Msps

FAST Open Network – IBS with High Rate IBS ESC, IDR and Audio

FAST D&I / D&I++ For Single Port T1/E1

FAST D&I++ For Quad E1 Port 2, 3 and 4

ACCESSORIES

CRS-170A 1:1 Modem Redundancy Switch (L-Band)

CRS-180 1:1 Modem Redundancy Switch (70/140 MHz)

CRS-300 1:10 Modem Redundancy Switch

CRS-280 1:10 IF Redundancy Switch (70/140 MHz)

CRS-280L 1:10 IF Redundancy Switch (L-Band)
