PCB-4000 1+1 Phase Combiner Revision 2

Updating Firmware MN/PCB4000.IOM

4–8

4.4 Performing the Automated FTP Upload Procedure



Toproceedwiththefirmwareupdateprocedure,assumptionsaremadethat:



• ThePCB‐4000isconnectedtoauser‐supplied,Windows‐basedPC,and:



o ThePCserialportisconnectedtothe‘J1|SystemCOM’port.



o The PC is running  a terminal emulation program (for operation of the

PCB‐4000serialremoteinterface).



• The latest firmware files have been downloaded or otherwise received from

ComtechEFDataandareavailableontheuserPCinanaccessibletempo rary

folder.



1. Double‐click FLSHCAT.EXE (filename or icon) on the PC desktop to execute

theFLASHUPLOADutilityprogram.



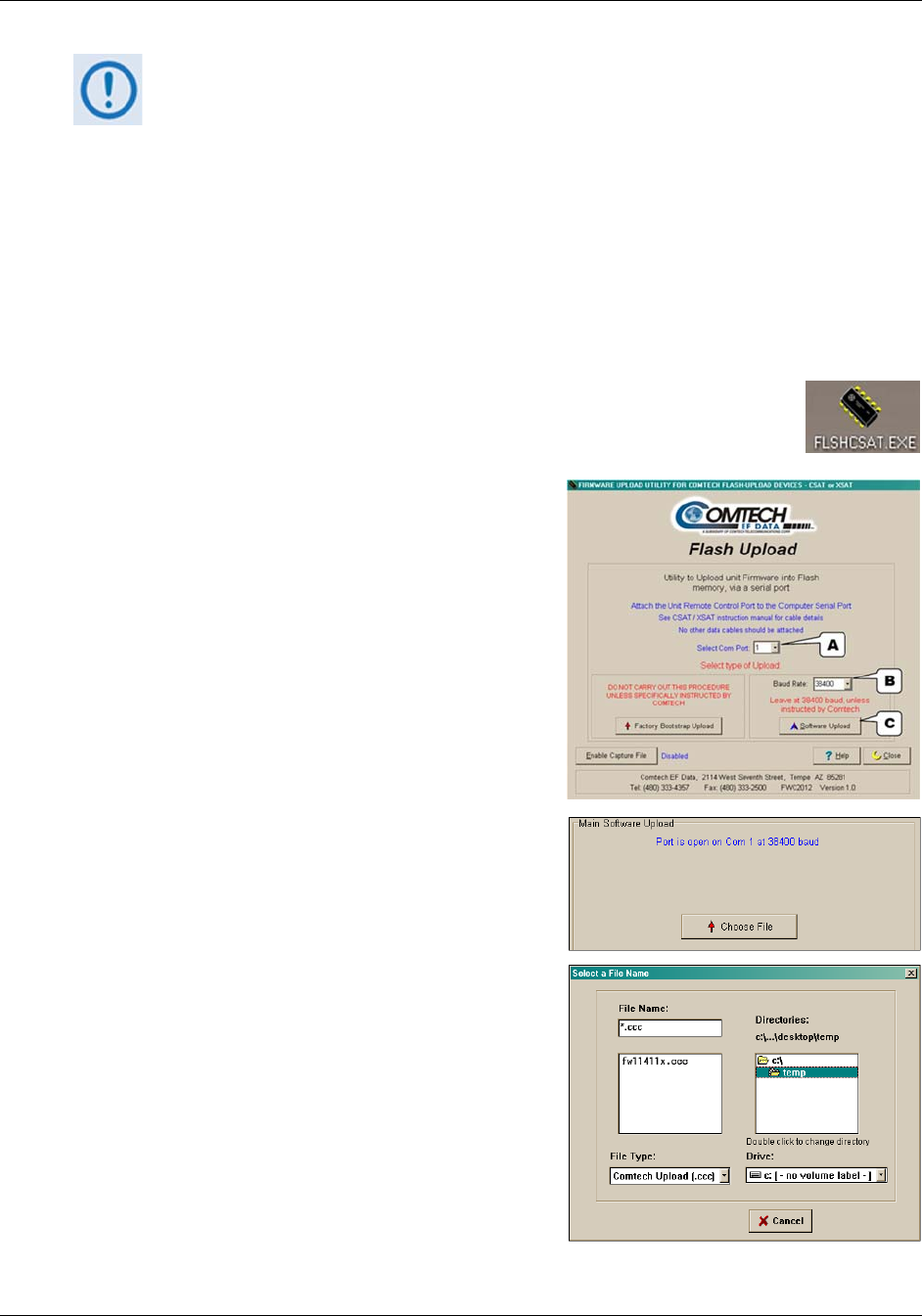

2. From the FLSHCAT dialogue box, select the

pertine

nt serial port used for communication

between the PC and the PCCB (this example

selectsCOM1,asnotedat‘A’.)



3. Do not select a Baud Rat e (‘B’) other than the

default selection of 38400, unless otherwise

instructedbyComtechEFDataTechnical Support.



4. Click‘Soft

wareUpload’(‘C’).



Selectthefirmwarefileforupload.Click‘ChooseFile’

then,oncetheSelectaFileNamedialog uebox opens,

usethewindowontherighttonavigatetothe

desiredfolder.Finally,double‐clickonthefirmware

filefromthewindowonthelef

t.


