PCB-4000 1+1 Phase Combiner Revision 2

Introduction MN/PCB4000.IOM

1–6

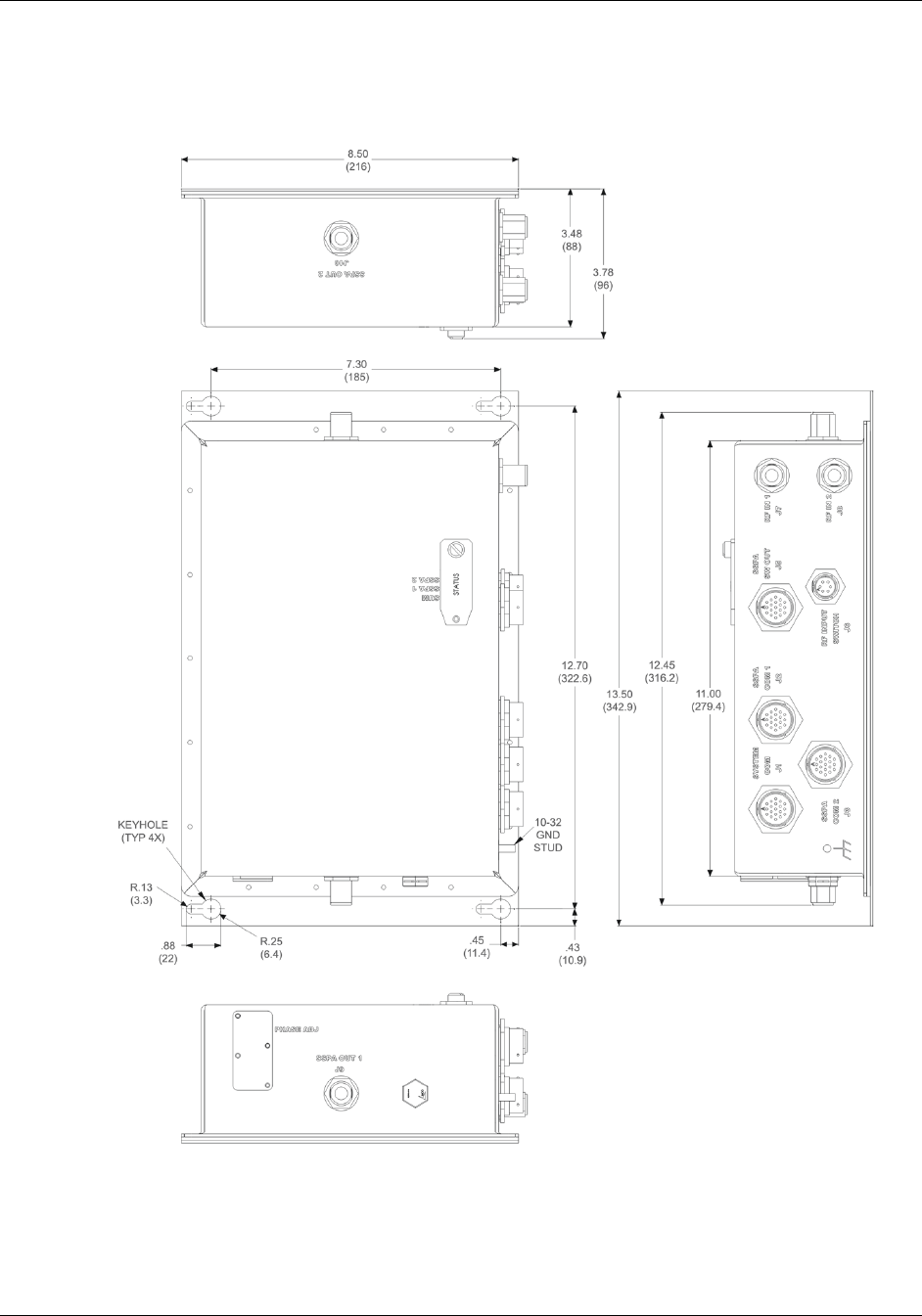

1.4 Dimensional Envelope

Note: All dimensions are in English units; metric unitsare shown in parentheses. This figure is

typical for the PL‐0000330 C‐Band, PL/11285‐1 X‐Band, PL‐0021051 Ku‐Band versions of the

PCB‐4000.



Figure 1-4. PCB-4000 Dimensional Envelope
