Introduction C5/K1/K3 Integrated Satellite Terminal System
1–12 Rev. 0
1.4.4 Low-Noise Phase-Locked Amplifier (LNA)
Note: This component is used in the C5 system only.
LNA (Figure 1-8) consists of a waveguide Transmit Reject Filter (TRF). The LNA
standard noise temperature is 60#K. The LNA’s DC power is supplied from the ODU.
The LNA is mounted to the OMT and is cabled to the ODU.

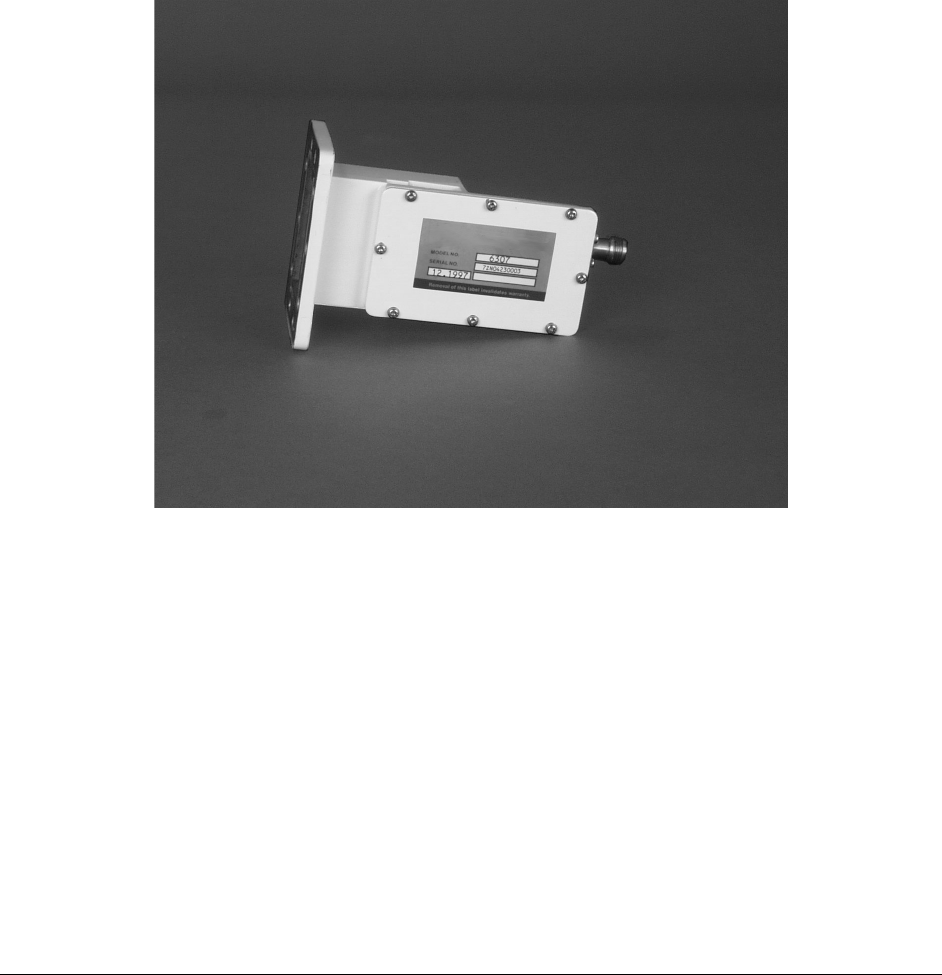

Figure 1-8. LNA
