1–1

Chapter 1. INTRODUCTION

1.1 Overview

Comtech EF Data’s MBT-4000BB Multi-Band RF Transceiver (Figure 1-1) is designed to perform

C-, X-, or Ku-Band RF to L-Band down conversion and L-Band to C-, X-, Ku-, or Ka-Band RF up

conversion.

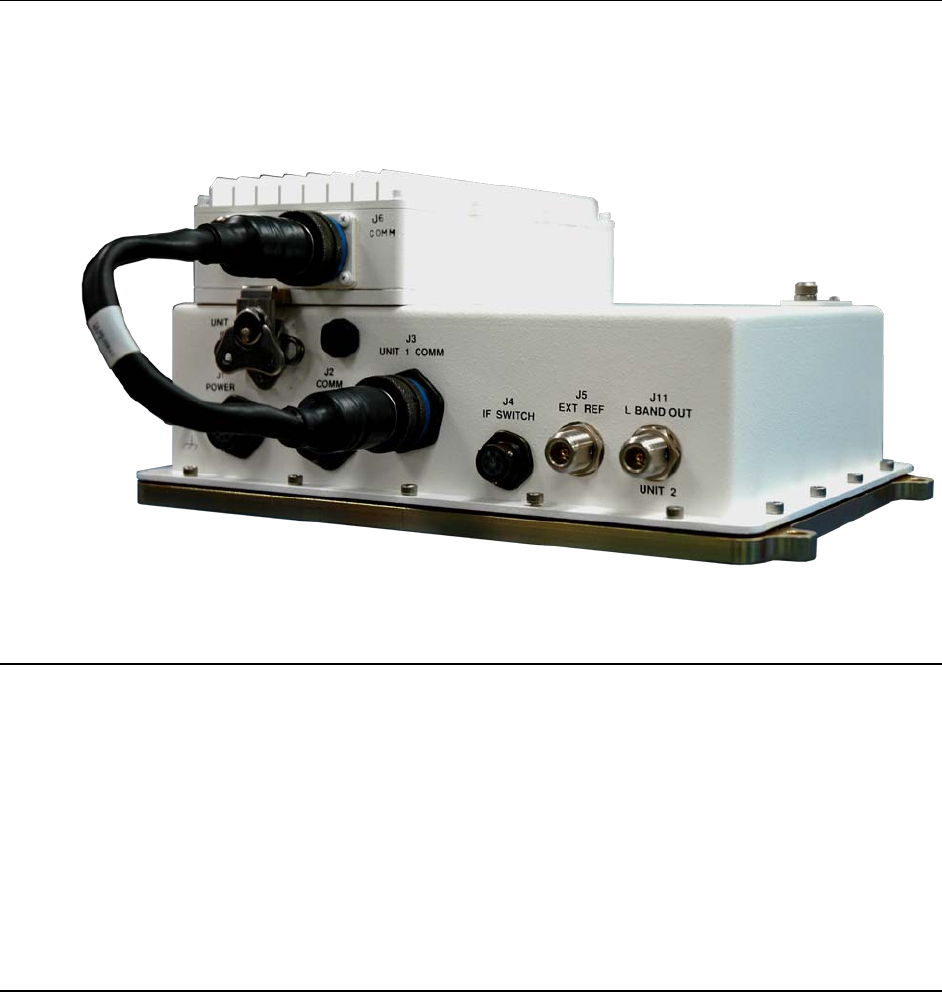

Figure 1-1. Comtech EF Data MBT-4000B Multi-Band RF Transceiver

1.2 Functional Description

The MBT-4000B is designed to perform the following functions:

• LNB support for C-, X-, or Ku-Band RF to L-Band down conversion

• L-Band to C-, X-, or Ku-Band RF up conversion

• RF Band switching in minimal time without requiring tools
