Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3

Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-IOM

E–10

E.5 Private MIB

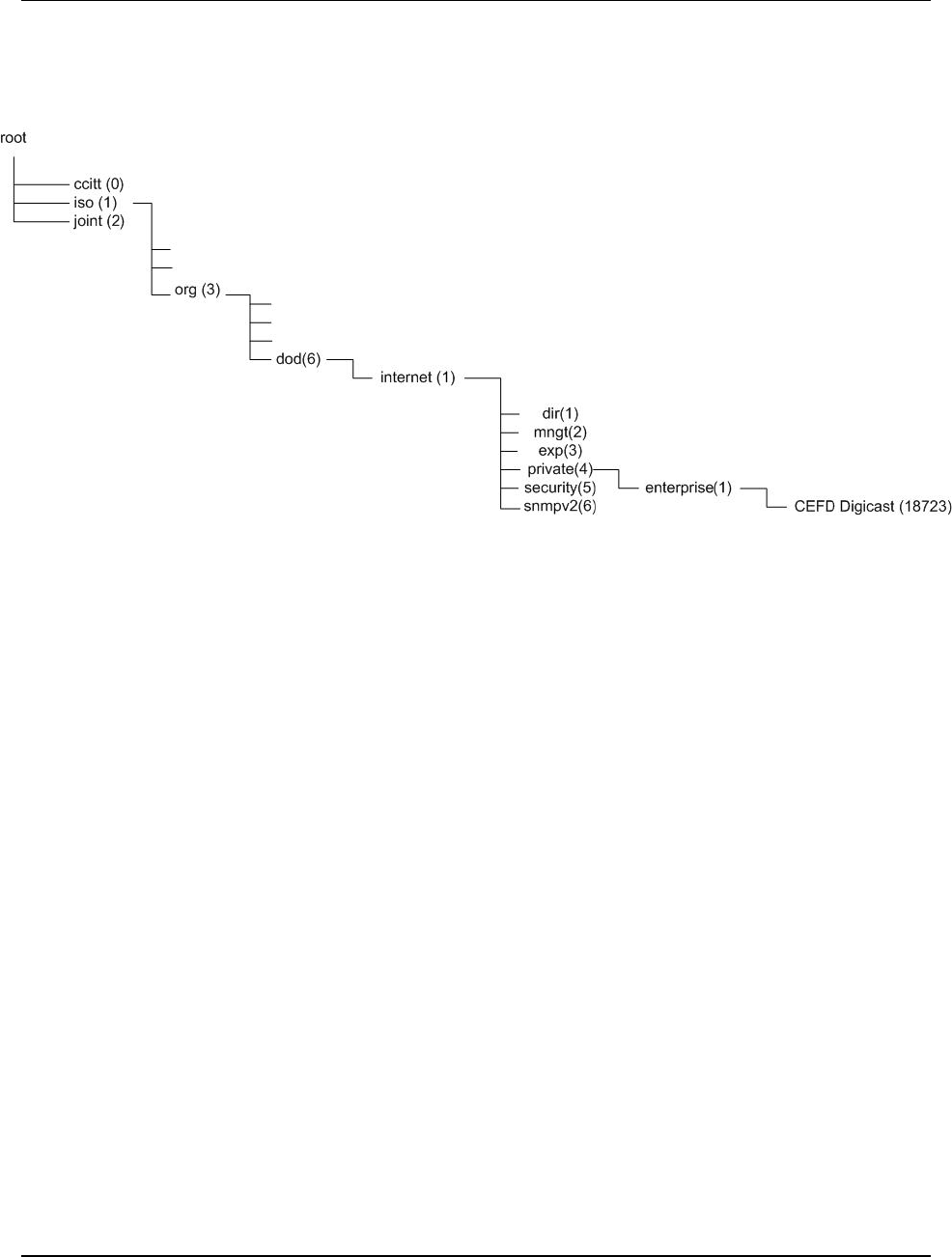

Comtech EF Data’s Digicast private enterprise number is 18732. Therefore, the private MIB for

Comtech EF Data’s Digicast products is as follows:

1.3.6.1.4.1.18723.

1 = iso

3 = org

6 = dod

1 = internet

4 = private

1 = enterprise

18723 = Comtech EF Data’s Digicast Enterprise Number

etc.
